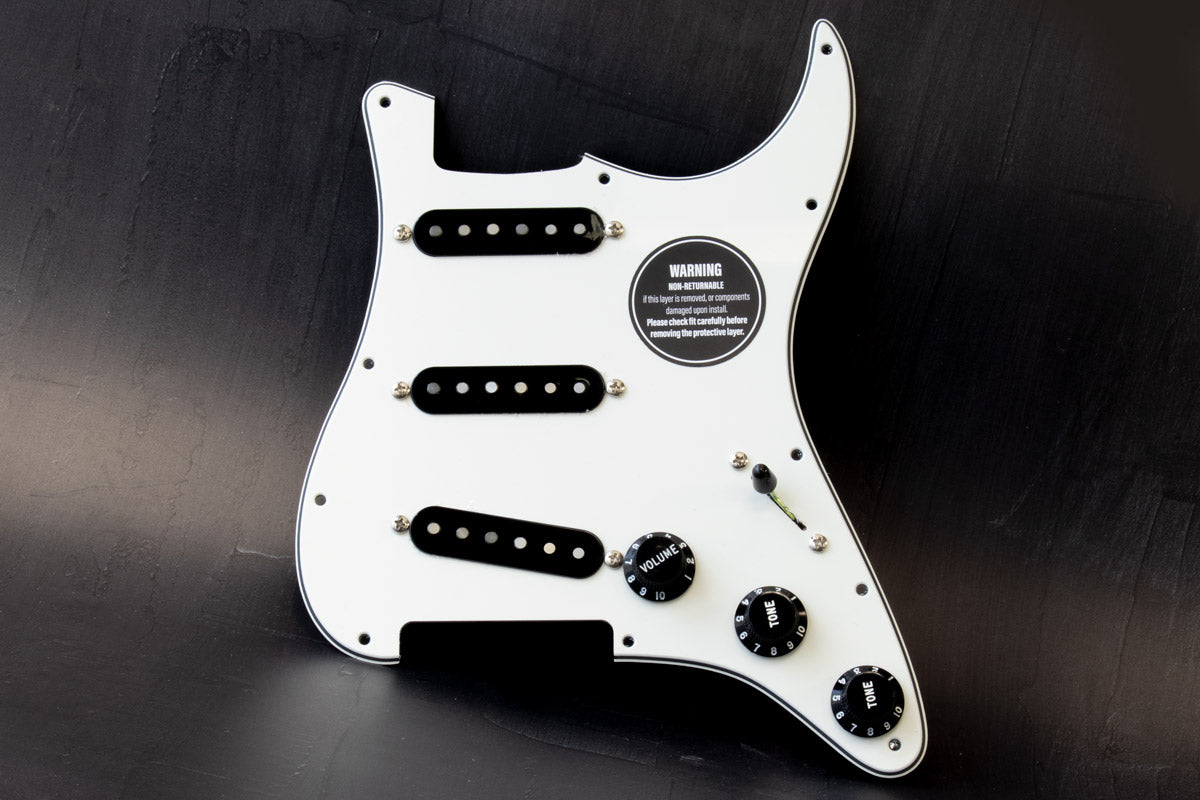

• ObsidianWire prewired pickguard with 1 ply black and parchment white knobs and pickup covers
  • Tonerider Loaded Pickguard for Strat® (SSS)
  • Tonerider Loaded Pickguard for Strat® (SSS)
  • Tonerider Loaded Pickguard for Strat® (SSS)
1 4

Tonerider Loaded Pickguard for Strat® (SSS)

$473.00 CAD
$473.00 CAD
Shipping calculated at checkout.

Have us build your dream Tonerider Loaded Pickguard, complete with a set of Obsidian® Pro-Wired™ Electronics, world class pickups and super high quality hardware.

Super Easy, Solder-less Install

  • Custom Loaded SSS Pickguard
  • ObsidianWire® Pro-Wired Electronics
  • World Class Pickups
  • Fully shielded pro-grade pickguard
  • Super Easy, Solderless Install

Custom Shop: Built to Order

Fast Build Time: Ships in 2-5 Business Days

Express Shipping Available: DHL Express

More information View images
ObsidianWire prewired pickguard with 1 ply black and parchment white knobs and pickup covers
Tonerider Loaded Pickguard for Strat® (SSS)
Tonerider Loaded Pickguard for Strat® (SSS)
Tonerider Loaded Pickguard for Strat® (SSS)

You Design It, We Build It...

Tonerider Loaded Pickguard for Strat® (SSS)

Have us build your dream Tonerider Loaded Pickguard, complete with a set of Obsidian® Pro-Wired™ Electronics, world class pickups and super high quality hardware.

Super Easy, Solder-less Install

  • Custom Loaded SSS Pickguard
  • ObsidianWire® Pro-Wired Electronics
  • World Class Pickups
  • Fully shielded pro-grade pickguard
  • Super Easy, Solderless Install

More Info...

The Wiring

1. ObsidianWire™ Custom Blender for Strat®

  • Stratocaster Blender Mod
  • Play Neck + Bridge Pickups Together
  • Master Tone
  • Master Volume

With a master volume and master tone control the Custom Blender Harness packs your traditional Strat® tones into a smaller space, leaving the third tone control free.

This becomes the blender control, adding the ability to blend the neck and bridge pickups in together. This is amazing for adding a range of musical mids to your lead tone (like the bell like effects David Gilmour gets in his signature Strat) or for adding some twang to your rhythm, just like you find in the middle position on a Tele®. When you need a complete wall of sound, you can even mix all three pickups together by flicking the five way switch to position 2 or 4

More Info

2. ObsidianWire™ Vintage Plus for Strat® Gen2

  • New 'Gen2' Model
  • Traditional '5-Way' Switching
  • Improved Tone Control Layout
  • Switchable volume control 'Voice'

The new Obsidian® Vintage PlusGen2 for Stratocaster® has had a complete overhaul to ensure you have access to the absolute in best Stratocaster Electronics. The new upgraded harness retains the traditional five way switching, but improves the tone control layout, smooths out the tone and volume control response, and gives you two volume control 'voices' so you can get your guitar setup exactly how you like it

More Info

3. ObsidianWire™ Custom 7 WAY Wiring // Gilmour Mod

  • New 'Gen2' Model
  • Gilmour Mod  / '7-Way' Switching
  • Play neck & bridge pickups together
  • Improved Tone Control Layout
  • Switchable Volume Control Voicings

The new Obsidian® Custom 7 Way wiring harness for Stratocaster® has had a complete over hall, to make the super versatile 7 Way wiring mod even better. The new upgraded harness retains the '7-way' switching inspired by David Gilmour, but improves the tone control layout, smooths out the tone and volume control responses, and gives you two volume control 'voices' so you can get your guitar setup exactly how you like it.

More Info

The Pickups

ToneRider

PURE VINTAGE

// Warm Vintage Strat

For that warm, vintage Stratocaster sound. Inspired by a collection of vintage pickups from the 1950s.

Neck 5.9k / Mid 6.1k / Bridge 6.45k

More Info

ALNICO II BLUES

// Touch Sensitive & Sweet Cleans

Perfect for Blues and Jazz, this new set offers players touch-sensitive and sweet clean tones, without boomy bass notes or harsh trebles.

Neck 6.1k / Mid 6.2k / Bridge 6.8k

More Info

CLASSIC BLUES

// Hotter 60s Strat Sounds

Nails the hotter 60’s Strat tones, whilst also offering the benefits of a calibrated wind for more even volume balance across all five positions.

Neck 6.3k / Mid 6.4k / Bridge 7.0k

More Info

CITY LIMITS

// Full Texas Neck & Middle & HOT Bridge

Fat full Texas neck and middle mixed pickups with a hotter bridge, for deep bass and tempered bell-like trebles. This set is specially crafted for Hot Blues & Rock.

Neck 6.0k / Mid 6.1k / Bridge 8.9k

More Info

The Look

Choose your favorite pickguard and knob combo.

Need inspiration?

Check out some of our favorite combos Here

The Install

Solderless Loaded Pickguard Install

Solderless Install

All Obsidian® loaded pickguards allow for a quick and easy solderless install using our own solderless Pro-Wired™ Electronics

Fitting

Loaded Pickguards (for Strat)

Obsidian® loaded pickguards for Stratocaster® are made to fit modern Fender Strat® bodies with 11 hole pickguards perfectly. Other bodies including Squier, import and after market type guitars may need adjustments to routing, or screw hole placement.

  • Mounting Hole Pattern: Modern Fender 11 hole
  • Control Cavity Routing: Fits genuine Fender Stratocaster
    Other guitars may need adjustment
  • Cavity depth: Minimum 34mm (1.26”)
    7-Way wiring always require full depth cavity around tone controls
  • Pickup Cavity Routing: Check pickup compatibility before ordering. Humbucker loaded pickguards require full size humbucker routing.

Control Plates (for Tele)

Obsidian® loaded control plates for Telecaster® are made to fit modern Fender Tele® bodies perfectly. Other bodies including Squier, import and after market type guitars may need adjustments to routing, or screw hole placement.

  • Mounting Hole Spacing: 150mm from center to center
  • Control Cavity Routing: Fits genuine Fender Telecaster
    Other guitars may need adjustment
  • Cavity depth: Minimum 34mm (1.26”)
    7-Way wiring always require full depth cavity around tone controls
  • Pickups: ObsidianWire Pro-Wired Electronics are generally made for standard two wire pickups.

    For different wire types select the Custom Universal harness. the Custom 4-Way harness requires a three wire neck pickup, or a solder join to add a new wire.

Control Plates (for Jazz Bass)

Obsidian® loaded control plates for Jazz Bass® are made to fit modern Fender Jazz Bass® bodies perfectly. Other bodies including Squier, import and after market type guitars may need adjustments to routing, or screw hole placement.

  • Control Cavity Routing: Fits genuine Fender Jazz Bass
    Other guitars may need adjustment - Minimum // width 24mm - length 128mm - depth 30mm
  • Pickups: Electronics are made for standard two wire pickups. Other pickups may require modification or soldering.

The Shipping

ObsidianWire Custom Shop Item:

This item is part of our Custom Shop range, built to order, one at a time in Christchurch New Zealand.

Build Time: 5 - 10 Business Days

We aim to build all custom shop orders within 5 - 10 business days (excludes weekends and public holiday). If we expect any delays we will let you know as soon as possible.

Shipping: Ships direct from Christchurch, New Zealand

All custom shop items ship direct from Christchurch, New Zealand. Please allow extra time for International shipping. Check for additional info on our shipping policies below
