A new Strat wiring harness is one of the easiest ways to upgrade the electronics in your Stratocaster.

Whether you're replacing worn-out controls, installing new pickups, adding more pickup combinations or simply looking for a cleaner, professionally assembled wiring system, the right Stratocaster wiring harness can transform the way you use your guitar.

And with a solderless system, you can do it without spending hours with a soldering iron.

ObsidianWire makes professionally assembled, premium solderless Strat wiring harnesses for traditional SSS Strats, HSS, HSH and HH configurations, as well as advanced 7-way and blender setups.

Shop All Strat Wiring Harnesses

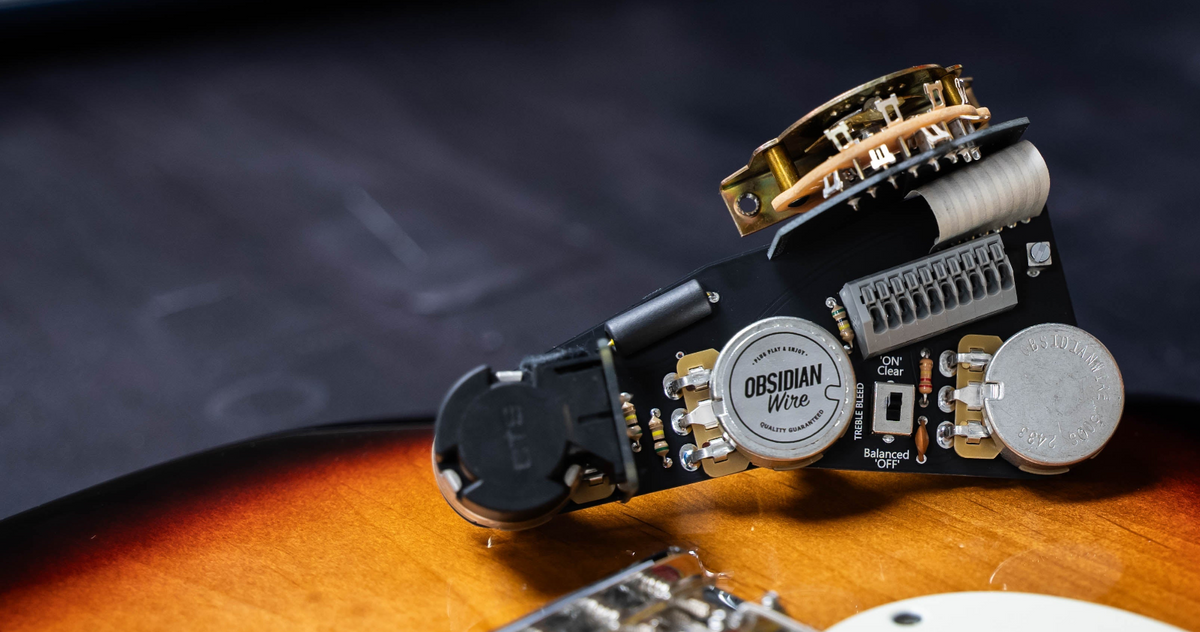

What Is a Strat Wiring Harness?

A Strat wiring harness is the collection of electronic components that controls your guitar's pickups and output.

A typical Strat harness includes:

  • Volume Control / potentiometer
  • Tone control(s) / potentiometers
  • Pickup selector switch
  • Capacitors
  • Output jack
  • Wiring and connections

Rather than buying and wiring all these components individually, a pre-wired Strat harness arrives assembled and ready to install.

This can save considerable time and removes much of the guesswork involved in building a Strat circuit yourself.

With an ObsidianWire solderless harness, the pickup connections are also designed to make installation and future pickup changes easier.

Explore Solderless Strat Wiring

Why Upgrade Your Strat Wiring?

Replacing a Strat's wiring isn't necessarily about making the guitar "sound better" in the simplistic sense.

The biggest benefits are often better control, additional functionality, improved reliability and easier future modifications.

A wiring upgrade can allow you to:

  • Replace worn or unreliable pots and switches
  • Improve the volume and tone control behaviour
  • Add a treble bleed for clarity at reduced volumes
  • Add additional pickup combinations
  • Add a blender control
  • Add 7-way switching
  • Configure HSS or HSH pickup combinations for clearer output
  • Make future pickup changes easier
  • Replace an old or poorly assembled harness

The right upgrade depends heavily on the pickups and configuration in your Strat.

Explore Solderless Strat Wiring

What Does a Strat Wiring Harness Include?

Not all Strat wiring harnesses are created equal.

When comparing a wiring kit, look at more than just the price.

Potentiometers

The volume and tone pots influence how your controls behave.

Pot resistance, taper and construction can all affect the interaction between your pickups and controls.

Capacitors

Tone capacitors form part of the guitar's tone-control circuit.

Their value affects the range of frequencies removed as you roll down the tone control.

Selector switch

The switch determines which pickups are connected to the circuit.

A good-quality switch is important for reliable switching and long-term use.

Output jack

The jack is the final connection between your guitar and amplifier, making it one of the most important mechanical and electrical connections in the guitar.

Wiring and connectors

This is where solderless systems differ most obviously from conventional harnesses.

Instead of soldering pickup wires directly to the controls, a solderless harness uses purpose-designed connectors.

Strat Wiring Upgrade Ideas

Choosing the Right Strat Wiring Harness

Before choosing a Strat wiring kit, the first thing to determine is what pickup configuration your guitar has.

ObsidianWire builds options for SSS, HSS, HH, and even single humbucker H Strat setups.

SSS Strat Wiring

The classic Stratocaster configuration uses three single-coil pickups:

Single
Single
Single

A conventional 5-way switch gives you:

  1. Bridge
  2. Bridge + middle
  3. Middle
  4. Middle + neck
  5. Neck

For a traditional Strat, an upgraded SSS wiring harness can provide a professionally assembled replacement while retaining the familiar controls and pickup combinations.

We also have some clever mods including our Custom Blender & Gilmour Mod 7-way controls to get more out of your traditional single coils.

SSS Strat Wiring Ideas

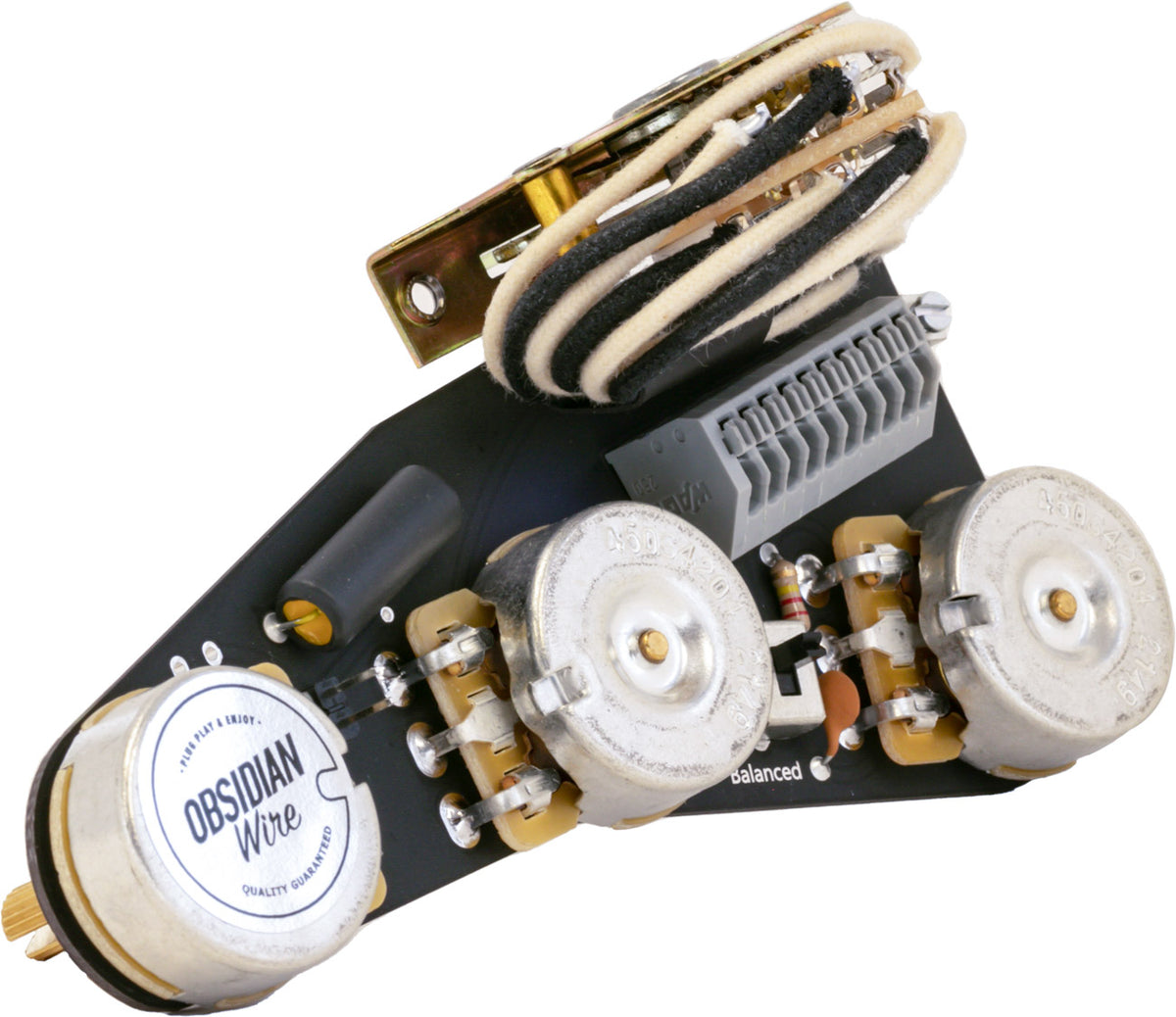

  • Vintage Strat Wiring

    ObsidianWire's Vintage for Strat is designed for players who want a premium replacement for conventional Strat electronics while retaining the familiar 5-way setup.

    • Bridge
    • Bridge + middle
    • Middle
    • Middle + neck
    • Neck

    The ObsidianWire upgrade harness is built to improve the volume and tone control tapers, and improve clarity at lower volumes, compared to a stock Strat wiring harness.

    See The Vintage Strat Wiring Harness

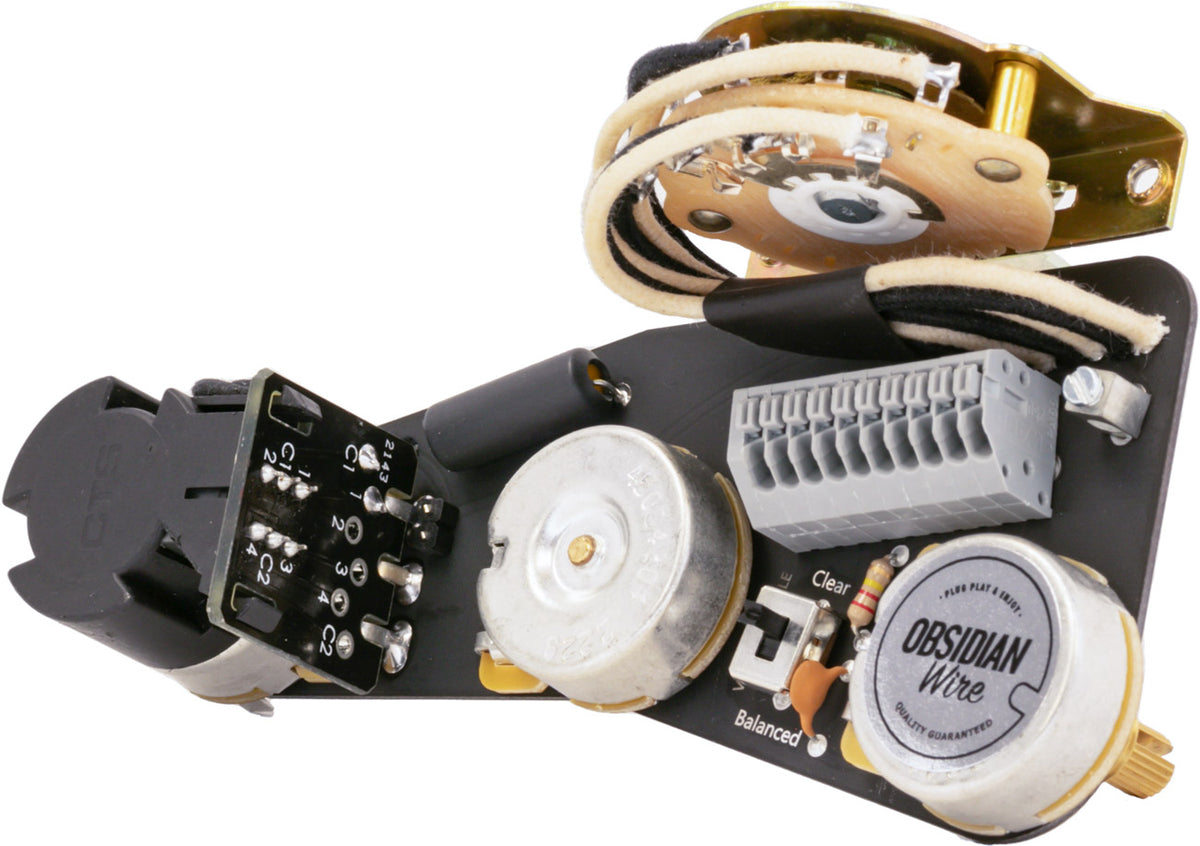

  • 7-Way Strat Wiring 'Gilmour Mod'

    A standard Strat 5-way switch provides five pickup combinations, but additional switching can unlock more.

    A 7-way Strat wiring harness can allow the neck and bridge pickups to be combined—something a conventional 5-way Strat cannot normally provide.

    This adds two useful combinations:

    • Bridge + neck
    • Bridge + middle + neck

    The result is more tonal flexibility without replacing the pickups.

    ObsidianWire's 7-Way for Strat is designed to provide these additional combinations while retaining the familiar Strat controls.

    See the 7-Way 'Gilmour Mod' Harness

  • Strat Blender Mod Wiring

    Another popular Strat modification is the blender circuit.

    A blender control allows you to gradually introduce one pickup into another rather than being restricted to the combinations provided by the 5-way switch.

    Depending on the configuration, this can provide additional bridge + neck or all-three-pickup combinations.

    The advantage of a blender is that it provides continuous control rather than simply adding another switch position.

    ObsidianWire's Universal Blender for Strat is designed for players who want additional control over their pickup combinations while maintaining a familiar Strat control layout.

    See the 'Blender Mod' Harness

HSS Strat Wiring

HSS—humbucker, single coil, single coil—is one of the most popular Strat configurations.

It combines the traditional Strat character of the middle and neck pickups with a higher-output humbucker at the bridge.

However, HSS wiring introduces an important electronics consideration.

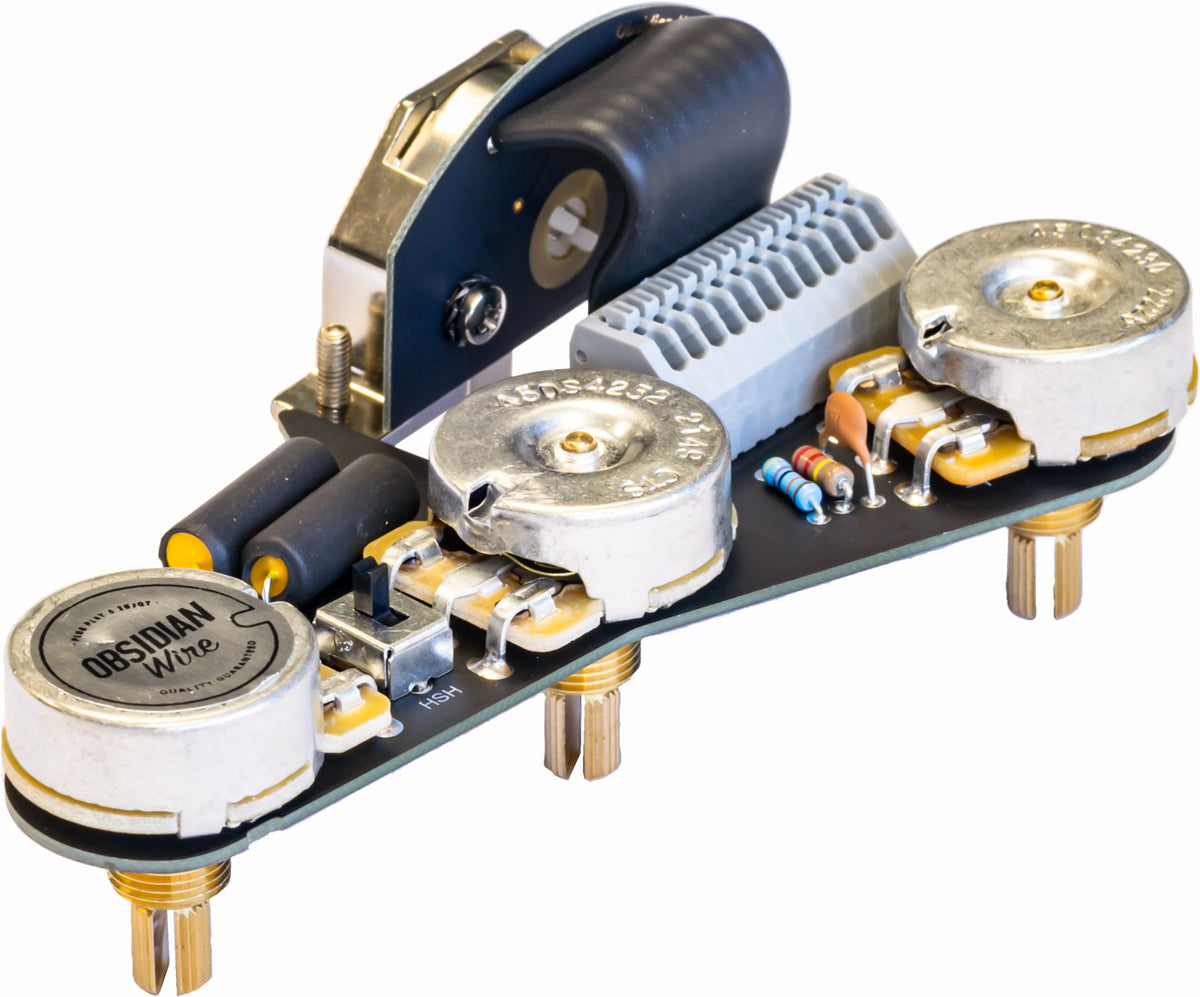

ObsidianWire HSS wiring harness for Stratocaster

250k or 500k pots for an HSS Strat?

Humbuckers are commonly paired with 500k volume controls, while traditional Strat single coils are commonly paired with 250k controls.

This creates a challenge for an HSS Strat.

Use 500k all the time and the single coils can become brighter than intended.

Use 250k all the time and the humbucker can sound darker.

ObsidianWire Introduces INTELLIGENT SWITCHING

Optimized for humbuckers & single coils. When building an HSH or HSS Stratocaster, there is a toss-up between choosing 500k controls to retain the life of a humbucker, or 250k controls to balance brighter single coils.

We use Obsidian® Intelligent Switching to give you the absolute best of both your humbuckers and single coils with a wiring harness that will automatically switch between the two.

This makes it particularly useful for players upgrading a Strat with pickups from manufacturers such as Seymour Duncan, DiMarzio, Fender, Fishman or other aftermarket brands.

Custom HSS / HSH for Strat® Gen2

HSS Strat Wiring Ideas

  • Balance HSS Humbuckers & Single Coils

    Get a better balance between your humbuckers and single coils for a more versatile HSS wiring setup

    Intelligent Switching: Get the most out of your single coils and humbuckers by using carefully placed 500k resistors to ensure all of your pickups automatically see the correct volume control 'load'

    Single coils - 250k to tame excess highs
    Humbuckers - 500k for fuller clearer output

    Auto Coil Splitting: Auto Split uses the extra lugs of a super switch to automatically switch your humbucker to single-coil mode when paired with your single-coils, keeping your pickups balanced and dynamic.

    Requires split-coil compatible humbuckers.

    See Custom HSS Strat Wiring Harness

  • 7-Way HSS Strat Wiring

    Unlock more tones from your HSS guitar with 7-way switching.

    Add the neck + bridge and all three pickup combinations to your selector, giving you more tonal options without changing your pickups.

    • Neck
    • Neck + Middle
    • Middle
    • Middle + Bridge
    • Bridge
    • Neck + Bridge
    • Neck + Middle + Bridge
    See The 7-Way HSS Strat Harness

  • TUNABLE Coil Split (fuller single coil sounds)

    More control over your coil split.

    Transform your humbucker into a single-coil with adjustable output, for fuller more natural sounds.

    Fine-tune the split to find the right balance between lower output, clarity and fullness, giving you more control than a traditional coil split.

    The Tuned coil split is built in to the ObsidianWire Lambertones HSS harness, using push/pull controls and variable resistor, with no additional modifications required.

    - Requires split coil compatible humbuckers

    See the 'Custom Lambertones' Harness

HH Strat Wiring & Single Humbucker Strat Wiring

Strats with humbuckers open up a different set of wiring possibilities. Whether your Strat has a single humbucker (H) or two humbuckers (HH), the right harness can give you more useful sounds from your existing pickups and controls.

Humbucker Loaded Strat Wiring Ideas

  • HH Strat Wiring

    An HH Strat gives you the power and fullness of two humbuckers, with plenty of scope for additional switching. Beyond the standard neck, neck + bridge and bridge combinations, alternative wiring can provide coil-split, series/parallel and additional pickup combinations.

    For compatible pickups, adjustable coil-splitting can also provide a more controllable alternative to a traditional full coil split, helping you find a useful balance between humbucker output and single-coil character.

    See Custom HH Strat Wiring

  • H Strat Wiring

    A Strat with a single humbucker can be surprisingly versatile. Push/pull switching can provide access to full humbucker and single-coil-style sounds, while alternative wiring options such as series/parallel switching can give the pickup a different output and tonal character.

    This makes it possible to add significantly more tonal range while keeping the familiar Strat control layout.

    See Single Humbucker Wiring

Solderless Strat Wiring vs Traditional Wiring

If you're considering a Strat wiring upgrade, you don't necessarily need to decide between "good" and "bad" wiring.

Traditional soldered wiring is still an excellent choice for custom builds and players who enjoy designing their own circuits.

The advantage of a solderless Strat wiring harness is convenience and repeatability.

More About Solderless Guitar Wiring →
Feature Traditional Strat Wiring Solderless Strat Wiring
Soldering required Yes No
Pickup changes More involved Easier
DIY installation Requires soldering skills Designed for easier installation
Pre-assembled circuit Optional Yes
Custom circuit flexibility Very high Depends on harness
Future pickup changes Usually requires soldering Much easier
Advanced Strat options Possible with custom wiring Available in HSS, HSH, 7-way and blender harnesses
A fully loaded HH Stratocaster pickguard using an ObsidianWire Solder-less wiring harness

Can You Change Strat Pickups Without Soldering?

Yes, if you're using a compatible solderless wiring harness.

This is one of the biggest advantages of upgrading to solderless Strat wiring.

Instead of permanently soldering the pickup wires to your pots or switch, the pickup connects to the harness using a connector.

When you want to change the pickup, you can disconnect it and install the replacement without rebuilding the entire circuit.

This can be particularly useful if you regularly experiment with different pickups.

However, pickup compatibility matters.

Different pickup manufacturers use different wire colours and wiring conventions, and features such as coil splitting may require four-conductor humbuckers.

Always check the wiring instructions for your specific pickup and harness.

View Install Info Pickup Wire Color Codes

Strat Wiring Harness vs Loaded Pickguard

Upgrading your Strat electronics doesn't necessarily mean replacing the entire pickguard. A wiring harness and a loaded pickguard offer two different ways to achieve the same goal, depending on what you want to keep and how much of the installation you want done for you.

Strat Wiring Harness

A pre-wired harness is ideal if you're happy with your existing pickguard and want to upgrade the electronics.

Choose a harness if you want to:

  • Keep your existing pickguard
  • Keep your existing pickups
  • Upgrade the pots, switch and wiring
  • Add advanced switching options
  • Change your electronics without changing the appearance of your Strat

Your pickups are installed into your existing pickguard, then connected to the pre-wired harness.

Loaded Pickguard

A loaded pickguard takes the installation one step further. The pickups, pickguard, controls and electronics are assembled and wired together, giving you a complete replacement assembly.

Choose a loaded pickguard if you want to:

  • Replace your existing pickups and electronics together
  • Start with a complete pre-wired assembly
  • Make installation as straightforward as possible
  • Change the look of your Strat at the same time

You simply fit the entire loaded pickguard to your guitar, using the supplied solderless connectors (if you choose ObsidianWire)

Which Should You Choose?

If you're happy with your current pickguard, a wiring harness is the straightforward electronics upgrade.

If you're looking to change the pickups or pickguard as well, a loaded pickguard gives you the complete package.

Either way, ObsidianWire takes the complicated wiring out of the equation — so you can spend less time soldering and more time playing.

Shop Solderless Guitar Wiring → Shop Solderless Loaded Pickguards →

What to Check Before Buying a Strat Wiring Kit

Before ordering a Strat wiring harness, check these key details.

1. Pickup configuration

Is your guitar SSS, HSS, HSH or HH?

Your wiring harness needs to match the pickup arrangement.

2. Number of controls

Most Stratocasters use three control positions, but modified guitars may have different configurations.

3. Pickup wiring

If you want coil splitting or other advanced humbucker functions, check that your pickups have the necessary conductors.

4. Pot specifications

Check the pot resistance, shaft type, mounting dimensions and control-hole requirements.

5. Pickguard compatibility

The harness needs to fit the physical layout of your pickguard and guitar cavity.

6. Wiring functionality

Decide whether you want conventional 5-way switching or something more advanced.

A slightly more sophisticated harness can provide substantially more functionality without changing the appearance of the guitar.

Will an ObsidianWire Strat Wiring Harness Fit My Guitar?

Most ObsidianWire Strat harnesses are designed around the dimensions of a standard Fender Stratocaster, making installation straightforward on most genuine Fender USA and Mexico-made Strats. Many Squier and Fender Japan Strats can also be fitted, but may require some simple adjustments.

Fender Stratocaster

Most Fender MIA and MIM Stratocasters are a direct fit.

Our standard Strat harnesses use full-size US-spec electronics and are designed to fit the standard Strat control layout.

Squier & Fender Japan

Many Squier and Fender Japan Strats can use ObsidianWire harnesses, but the original guitars often use smaller metric control holes and different knobs.

Typically, you'll need to:

  • Widen the control holes to approximately 9.52–10mm (3/8")
  • Replace the original knobs with US-spec 24-spline knobs
  • Check the available cavity depth, particularly when using push/pull controls

These are straightforward modifications, but always check the specific harness you're buying, as requirements can vary between models.

Check Your Cavity Depth

Push/pull harnesses require additional clearance inside the control cavity. ObsidianWire's general Strat installation guide specifies a minimum cavity depth of 34.5mm, with around 30mm of clearance required around push/pull pots for the relevant harnesses. Some individual models have different requirements, so use the product-specific specification as the final reference.

Check Your Pickup Configuration

Different harnesses are designed for different pickup layouts. For example, ObsidianWire offers dedicated wiring for SSS, HSS, HSH and HH Strat configurations, with the required pickup wiring depending on the harness and switching options selected.

If you're installing a humbucker with coil-splitting, make sure the pickup has the appropriate conductors for the wiring option you want.

One Important Rule

Always check the compatibility information for the specific harness before ordering.

Stratocasters have been produced in many different configurations over the years, and control-hole sizes, cavity dimensions, pickup layouts and hardware can vary.

If your guitar isn't specifically listed, don't assume it will fit. Check the hole layout, cavity depth and pickup configuration against the harness specifications before purchasing.

Not sure? Contact us with your exact Strat model and we'll help you check compatibility.

Strat Wiring FAQs

What is the best wiring harness for a Strat?

The best Strat wiring harness depends on your pickup configuration and the features you want. A traditional SSS Strat may only need a conventional 5-way harness, while an HSS, HSH or modified Strat can benefit from additional switching and pickup-specific circuitry.
What is a Strat wiring kit?

A Strat wiring kit is a collection of electronic components used to wire a Stratocaster's pickups, controls and output jack. A pre-wired harness comes assembled, making installation faster and easier.
Can I install a Strat wiring harness without soldering?

Yes. A solderless Strat wiring harness is specifically designed to allow compatible pickups and other connections to be installed without traditional soldering.
What pots should I use in a Strat?

250k pots are traditionally associated with Strat single-coil pickups, while 500k pots are commonly used with humbuckers. HSS guitars can therefore require a more sophisticated approach to pot selection and switching
Does a Strat wiring harness change the sound?

The harness itself isn't automatically a "tone upgrade." However, component values, control taper, pickup loading and circuit design can affect how your guitar's controls interact with the pickups.
Is solderless wiring reliable?

A properly designed and professionally assembled solderless system can provide a reliable alternative to traditional soldered wiring. The quality of the connectors, components and assembly is important.

Find Your Strat Wiring Harness

Expore More

A fully loaded HH Stratocaster pickguard using an ObsidianWire Solder-less wiring harness

Premium Solder-less Guitar Wiring

About ObsidianWire®

ObsidianWire® makes premium, Pro-Wired & solderless guitar wiring harnesses designed to make upgrading your guitar easier. From Stratocaster and Telecaster wiring to Les Paul and custom configurations, ObsidianWire combines quality components, clever circuit design and solderless installation to help guitarists

Plug, Play & Enjoy™.

Learn More
