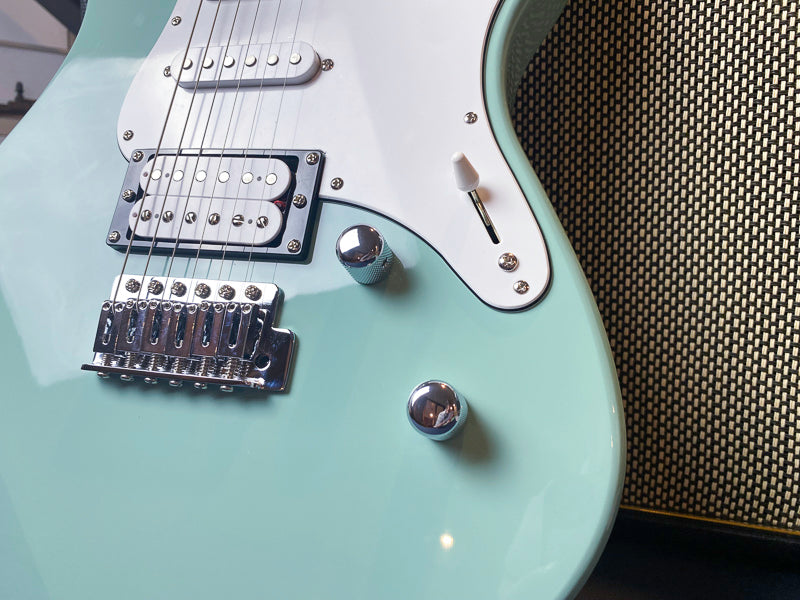

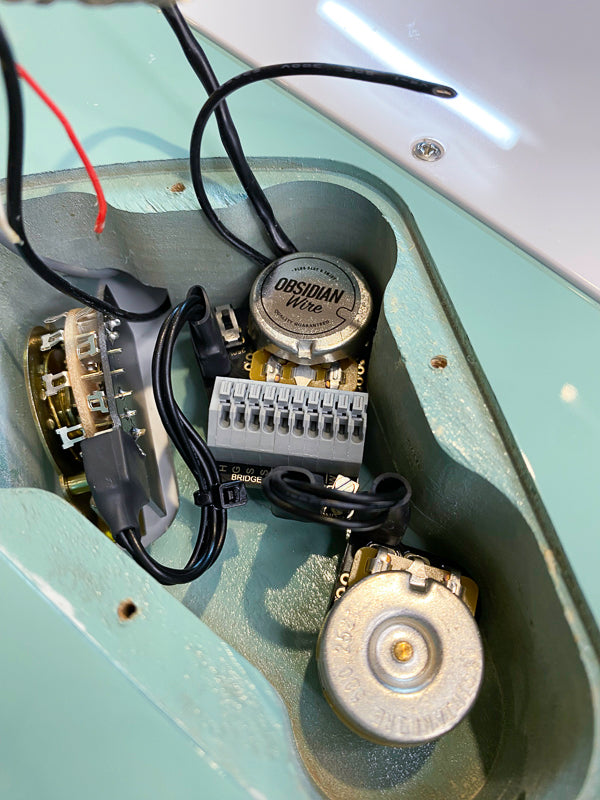

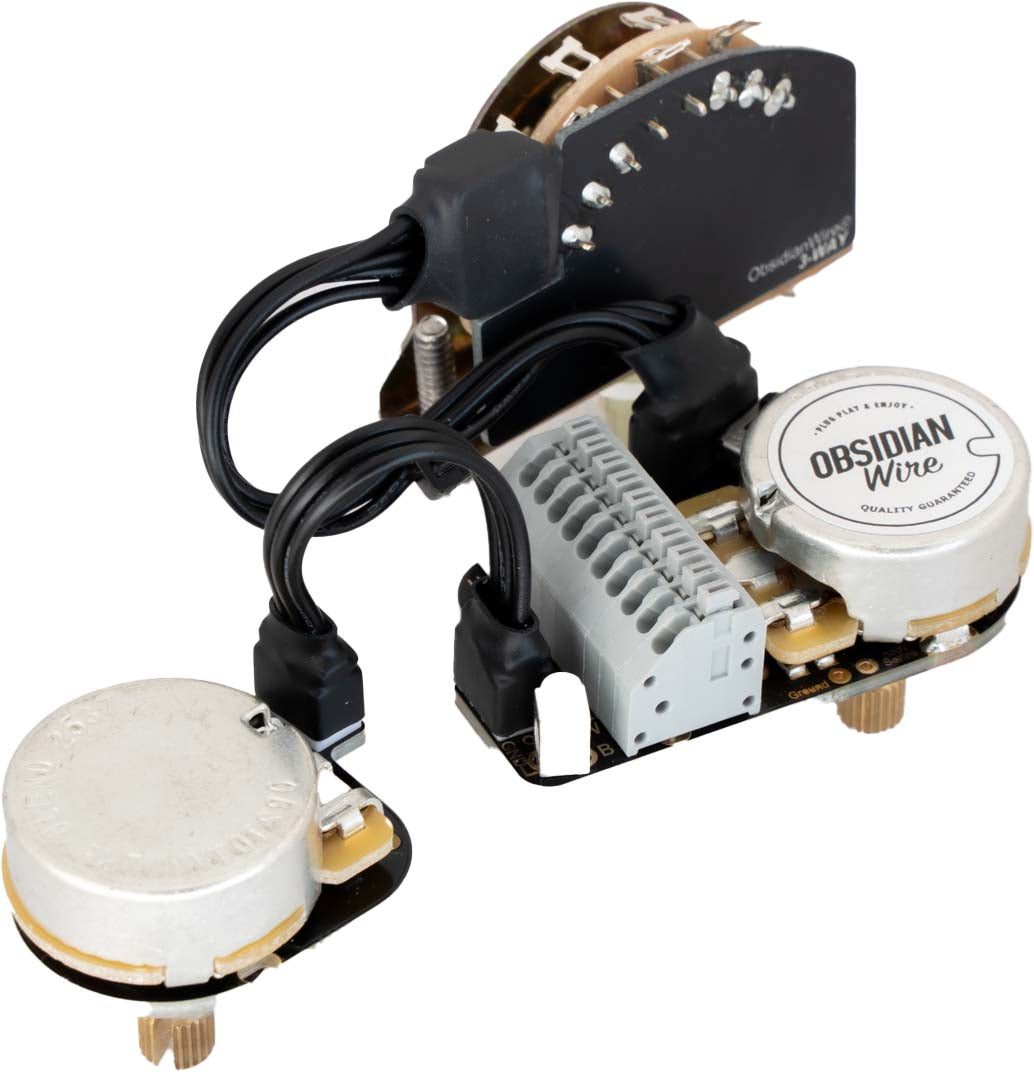

M2-S | Wiring Harness for Yamaha Pacifica - Two Pickup

Regular price
$193.00 CAD
Regular price
Sale price
$193.00 CAD
Shipping calculated at checkout.

Flex-Series™ M2-S | For Two Two Pickup Yamaha Pacifica

  • For: Two Pickup Yamaha Pacifica
  • Mounting:
    Pickguard Mount - Use Short Shaft Set
    Cavity Mount - Use Long Shafts Set
  • Switch: 3-Way Blade
  • Volume Control: 250 / 500k Switchable
  • Tone control: - Master Tone
  • Suits Pickups: Humbuckers / Single Coils / P90s
  • IMPORTANT: This set uses high-grade, US spec parts. You will need to ream control holes to 9.54mm, and get new US spec 24 spline, or solid 1/4" knobs.


Build Your Harness

M2-S | Two Pickup Wiring Harness // S-Type (Shaft Length)
Pro-Wired™ PureTone Guitar Jack (Wire Type)

FAST SHIPPING

5 YEAR WARRANTY

M2-S | Wiring Harness for Yamaha Pacifica - Two Pickup
M2-S | Wiring Harness for Yamaha Pacifica - Two Pickup

Details

Description

ObsidianWire solderless install logo

Super Easy, Solder-less Install
All Obsidian® Pro-Wired Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.

Flex-Series™ | The new generation of Pro-Grade Guitar Wiring

Flex-Series™ M2-S | For Two Two Pickup Yamaha Pacifica

  • For: Two Pickup Yamaha Pacifica
  • Mounting:
    Pickguard Mount - Use Short Shaft Set
    Cavity Mount - Use Long Shafts Set
  • Switch: 3-Way Blade
  • Volume Control: 250 / 500k Switchable
  • Tone control: - Master Tone
  • Suits Pickups: Humbuckers / Single Coils / P90s

IMPORTANT: This set uses high-grade, US spec parts. You will need to ream control holes to 9.54mm, and get new US spec 24 spline, or solid 1/4" knobs.

Features

ObsidianWire IGNEOS™ Firm Grip Pots

ObsidianWire® IGNEOS™ guitar pots are the new standard for pro-grade guitar wiring.

  • Durable Design - for years of trouble free use
  • Fine Tolerance - Guaranteed to spec +/- 10%

CRYSTAL CLEAR TONE (Treble Bleed)

Retain clarity at lower volumes. To make your tone crystal clear at lower volumes we include an Obsidian® Custom spec treble bleed mod. This prevents tone 'muddiness' at low volumes by allowing high frequencies to pass along a separate path to your amp, rather than being stopped short by the increasing resistance at the volume control.

SMART VOLUME CONTROL (Switchable 250k / 500k)

Easily select between 250k & 500k to optimize the treble balance for your setup

250k = Warmer / balanced treble (great for single coils)
500k = Brighter / retains treble (great for humbuckers & P90s)

MASTER TONE CONTROL

Add a custom designed master tone control using our ObsidianWire designed, CTS built IGNEOSpots, for a smooth and useable tone control taper.

Compatibility

Read carefully.

  • Made to fit two pickup Yamaha Pacifica style control layouts.
  • Short Shaft Set - Pickguard mount Only
  • Long Shaft Set - Cavity Mount Only
  • Requires hole widening to 9.54mm
  • Requires new US spec knobs

Install

  • Short Shaft: Pickguard / Control Plate Mount Only
  • Long Shaft Set - Cavity Mount Only
  • Hole Size: 9.54mm
  • Knobs: USE ONLY
    -
    Split Shaft 24 Spline Knobs 'US Spec' OR//
    - Solid 1/4" Knobs 'US Spec' with included shaft adapter

DO NOT USE ORIGINAL YAMAHA METRIC / 18 SPLINE KNOBS

Pickups

Switchable Volume Control: 250k / 500k

  • Single Coils - Use 250k
  • Humbuckers -Use 500k
  • P90s  - Use 500k

Does NOT suit Active / Battery powered pickups

Compatible with all M2-S Flex-Series™ Parts

  • Tone Controls
  • Switches
  • Accessories
  • Pro-Wired Jacks

Specs

Install
