Super Easy, Solder-less Install
All Obsidian® Pro-Wired™ Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.

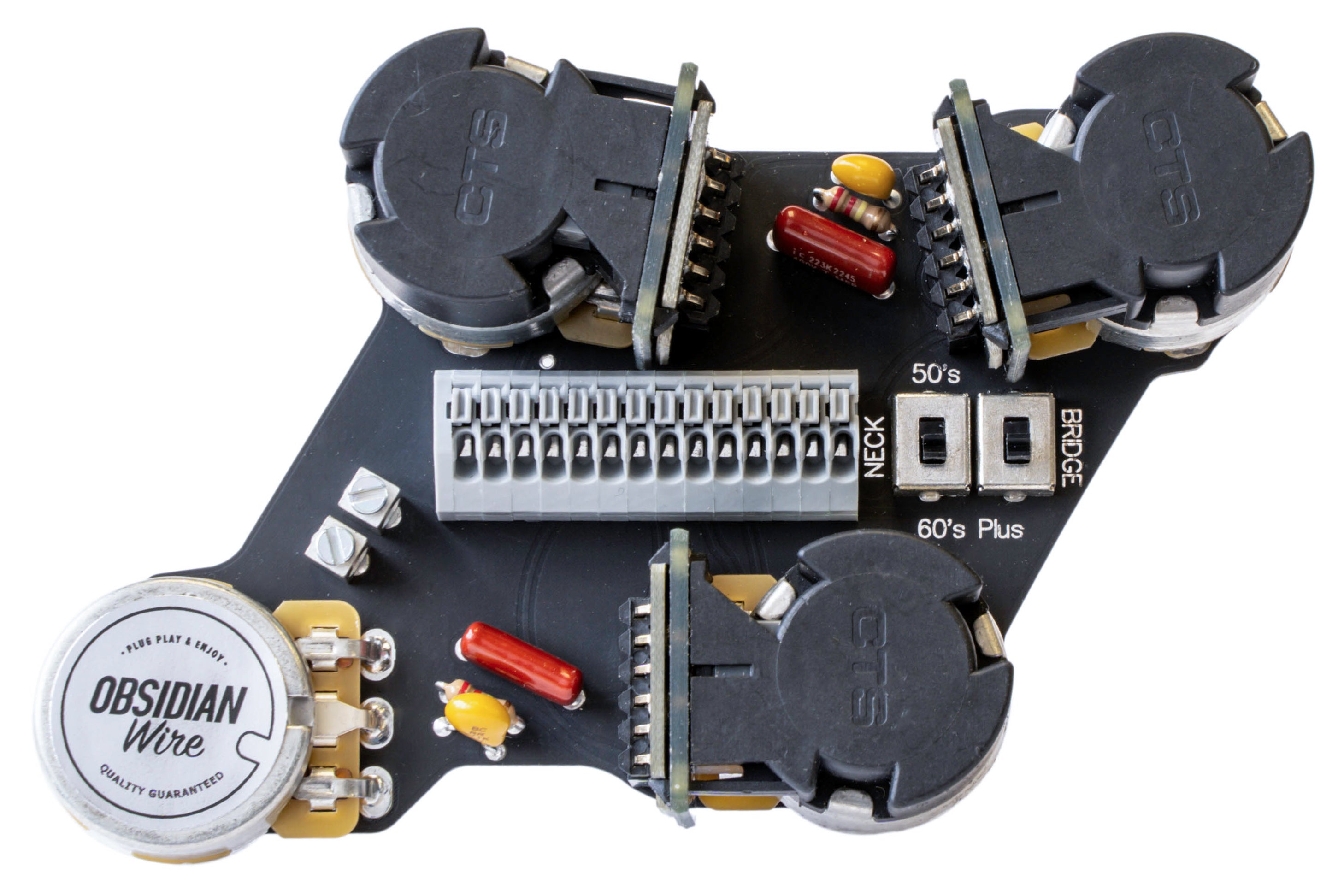

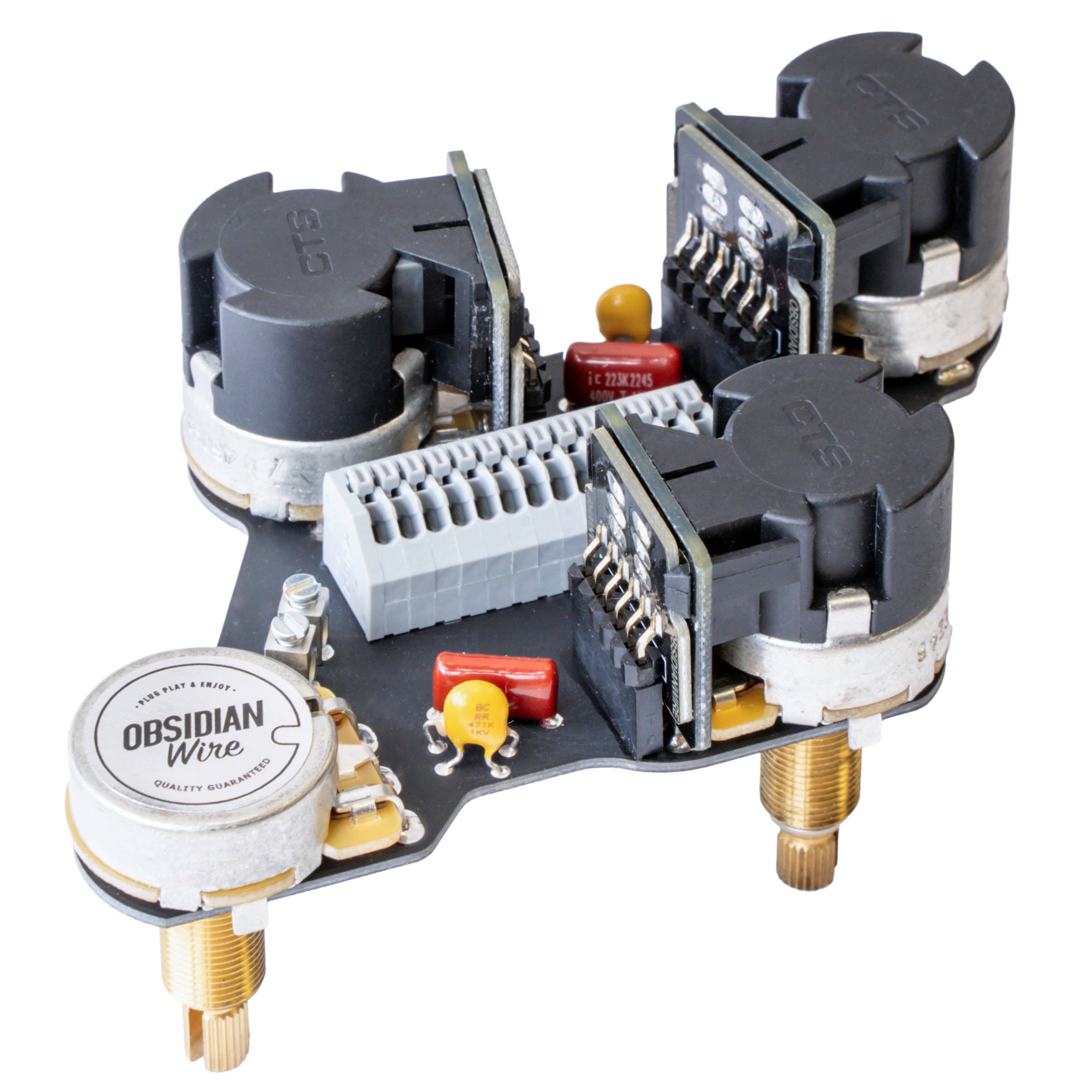

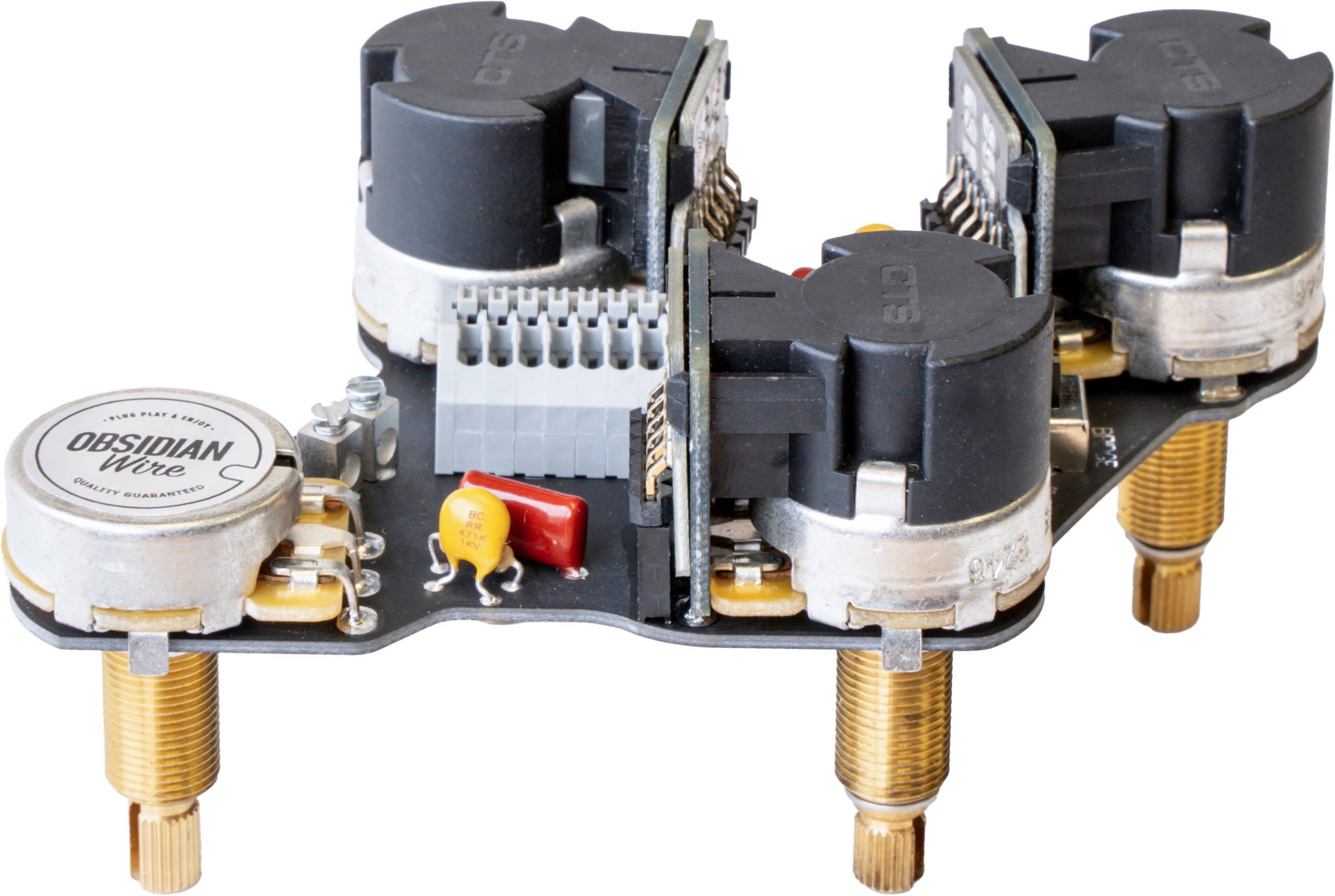

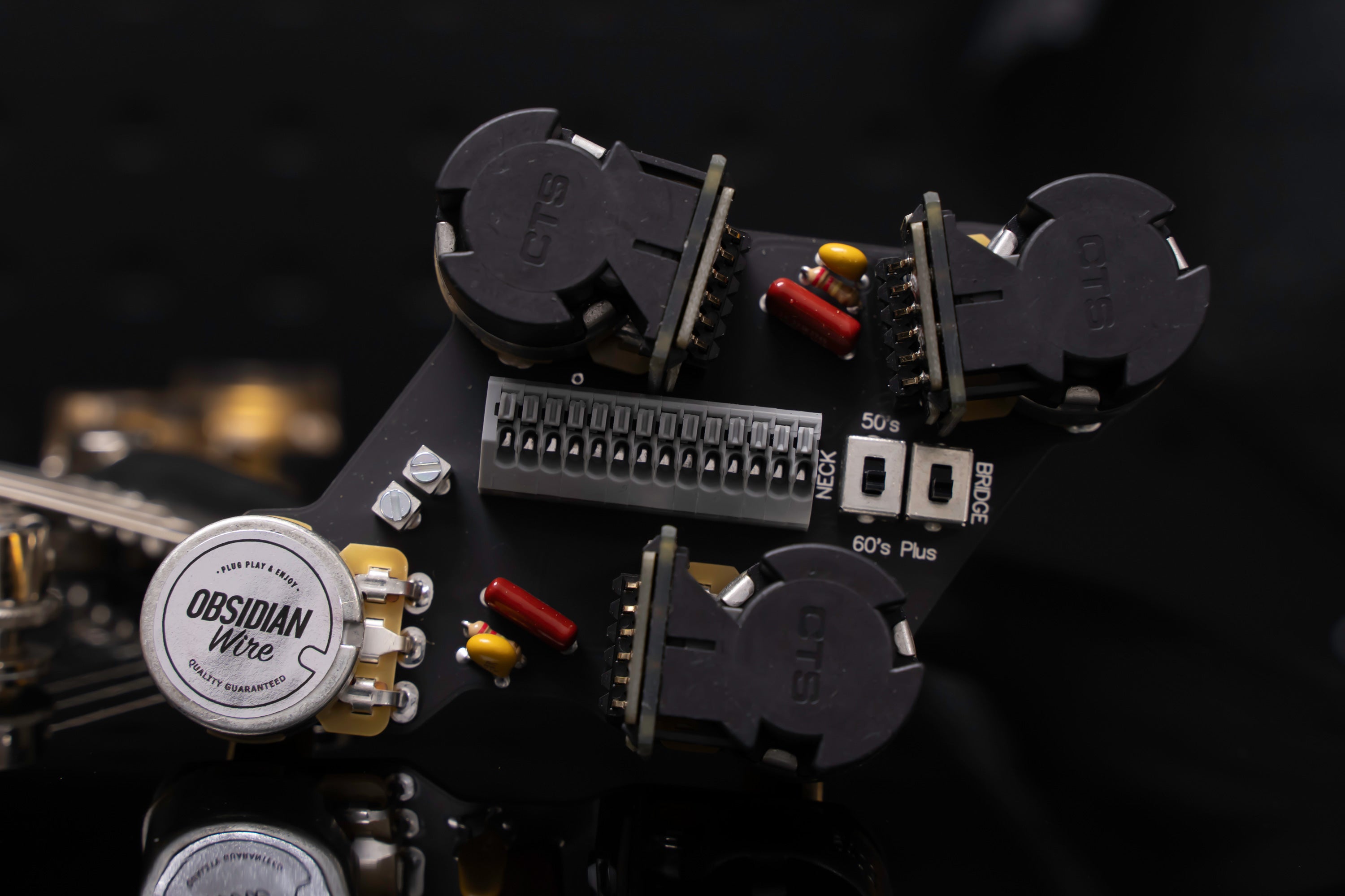

'The Ultimate' Wiring for Les Paul® // 'JP' Mod
'The Ultimate' wiring for Les Paul® is a full featured and comprehensive wiring upgrade, designed to give you all of the best Les Paul sounds in one setup.
Based on the wiring used by Jimmy Page, and tweaked and adjusted to make it even more versatile.
The extra sounds are activated using three push / pull pots, so no extra mods are required to the body of your guitar.
Features:
- Selectable 'Vintage 50's' / '60's Plus' Wiring
- Dual SC 'Coil Split'
- 'Series' Mode
- Phase Switching
- Series // Parallel Switching
- Solder-less Install
- Fits Gibson & *Epiphone Les Paul
* REQUIRES FOUR CONDUCTOR PICKUPS
MKII '50S' // '60S PLUS' SWITCHING
'VINTAGE 50'S' MODE
Allow for some treble roll off when you roll back your volume control for an easy bridge between perfect warm cleans and searing leads.
'60'S PLUS' MODE
Prevent treble loss when you roll back the volume for greater clarity and cut through at reduced volume levels.
For a full run down on different Les Paul wiring types, check out our full guide - Click Here
DUAL SC // COIL SPLITTING (Neck Volume)
Split both humbuckers into single-coils for lower output, more dynamic tones.
'SERIES' MODE (Neck Tone)
Play your neck and bridge pickups in Series for a fuller output sound with a boosted midrange.
PHASE SWITCHING (Bridge Tone)
Play your neck and bridge pickups out of phase for nasally Les Paul sound made famous by Brian May and Jimmy Page.
